            Hales FrogFlite/Yeoman Quick Build all balsa sheet models

            The models in this section represent reproductions of the old Hales FrogFlite/Yeoman series models. This series of models is similar to those presented in the Top Flite Jigtime, Goldberg, and Kiel Kraft EzEeBilt model series. They were die cut balsa models with color and markings pre applied. Like the Goldberg and Kiel Kraft models, the amount of color was limited so all of the models presented as reproductions have had the color enhanced to better represent the box art of each kit. Many thanks go to Daniel Müller for providing all of the material necessary to develop this group of reproduction drawing packages.


            The models shown here along with the plan packages are a best attempt to reproduce the original series in their original form. Each plan package includes a scan of the original kit plan along with some building notes. All of the plans are in the Adobe PDF format. Each package contains multiple pages that are printed on U.S. legal size paper (8.5" x 14"). A link is provided with each model description to download the associated plan package.


            WHEN PRINTING MAKE SURE THAT PRINT SCALING HAS BEEN TURNED OFF.

            A description of the method I use to print the parts directly on balsa is provided here. Just click on the link.


            NOTE - A very good alternative to printing the parts for these models directly on balsa it to use T-shirt iron-on transfer paper. This material comes in 8 1/2" x 11" sheet size and works very well for transferring the drawn parts to balsa. A summary of the process for doing this is covered here. The major advantage of using this process is any printer can be used. To make it a bit easier to use iron-on transfer paper to create the full color parts for these models an alternate parts drawing package is provided. This drawing package has been laid out for 8 1/2" x 11" and for A4 sheets. A link to the iron-on transfer packages is provided in each model section of this page.


            If you have access to a 3D printer, you will find some 3D print files for propellers here. The 6 1/2" or 7" prop are well suited for these models.


            Cessna Bird Dog

            External link opens in new tab or window

            This is the Cessna Bird Dog. The color and markings have been enhanced from those used in the original kit. The markings are those provided on the kit box art. The model has a wing span of 17.5".






            External link opens in new tab or window

            Files to Download

            FF Bird Dog plan package.pdf
            FF Bird Dog transfer layouts-letter.pdf
            FF Bird Dog transfer layouts-A4.pdf

            Auster Autocar

            External link opens in new tab or window

            This is the Auster Autocar. The color and markings are those used in the original kit. The model has a wing span of 19".

            External link opens in new tab or window

            Files to Download

            FF Auster Autocar Plan Package.pdf
            FF Auster Autocar transfer layout - letter.pdf
            FF Auster Autocar transfer layout - A4.pdf


            Aeronca Sedan

            External link opens in new tab or window

            Thanks to Dave Livingston we have the Aeronca Sedan. This plan package and photo of the model he built was provided by Dave.

            External link opens in new tab or window

            Files to Download

            FF_Aeronca_Sedan_Plan_Package.pdf

            Hawker Fury

            External link opens in new tab or window

            This is the Hawker Fury. The color and markings are those of the original kit with some enhancements. Color was added where the original kit had bare balsa. The model has a wing span of 15".

            https://0201.nccdn.net/1_2/000/000/198/13f/FF-Hawker-Fury-bottom-1600x1200.jpg
            https://0201.nccdn.net/1_2/000/000/0df/206/FF-Hawker-Fury-Box-Art.jpg
            https://0201.nccdn.net/1_2/000/000/198/13f/FF-Hawker-Fury-bottom-1600x1200.jpg
            https://0201.nccdn.net/1_2/000/000/0df/206/FF-Hawker-Fury-Box-Art.jpg

            Files to Download

            FF Hawker Fury.pdf
            FF Hawker Fury transfer layout-letter.pdf
            FF Hawker Fury transfer layout-A4.pdf

            Ryan PT-20

            External link opens in new tab or window

            This is the Ryan PT-20. The color and markings are those used in the original kit with some enhancement. The model has a wing span of 17".

            External link opens in new tab or window

            Files to Download

            FF PT-20.pdf
            FF PT-20 Transfer Layouts-Letter.pdf
            FF PT-20 Transfer Layouts-A4.pdf

            Dornier DO 27

            External link opens in new tab or window

            This is the Dornier DO 27. The color and markings have been enhanced from those used in the original kit. The markings are those provided on the kit box art. The model has a wing span of 18.5".

            External link opens in new tab or window

            Files to Download

            FF Dornier DO 27 plan package.pdf
            FF Dornier DO 27 iron on transfer layout - Letter.pdf
            FF Dornier DO 27 iron on transfer layout - A4.pdf

            DeHavilland Tiger Moth

            External link opens in new tab or window

            This is the DeHavilland Tiger Moth. The color and markings are those of the original kit with some enhancements. The model has a wing span of 15".

            https://0201.nccdn.net/1_2/000/000/0b5/022/FF-Tiger-Moth_Bot-1600x1200.jpg
            https://0201.nccdn.net/4_2/000/000/038/2d3/FF-Tiger-Moth-Box-Art-1600x403.jpg
            https://0201.nccdn.net/1_2/000/000/0b5/022/FF-Tiger-Moth_Bot-1600x1200.jpg
            https://0201.nccdn.net/4_2/000/000/038/2d3/FF-Tiger-Moth-Box-Art-1600x403.jpg

            Files to Download

            FF Tiger Moth package.pdf
            FF Tiger Moth iron on transfer layout - Letter.pdf
            FF Tiger Moth iron on transfer layout - A4.pdf

            Beagle Pup

            External link opens in new tab or window

            This is the Beagle Pup. The markings are those used in the original kit. The colors have been enhanced based on the kit box art. The model has a wing span of 17".

            External link opens in new tab or window

            Files to Download

            FF Beagle Pup package.pdf
            FF Beagle Pup Iron On Transfer - letter.pdf
            FF Beagle Pup Iron On Transfer - A4.pdf

            Gloster Gladiator

            External link opens in new tab or window

            This is the Gloster Gladiator. The markings are those of the original kit with some enhancements. Color was added where the original kit had bare balsa. The model has a wing span of 15".

            https://0201.nccdn.net/1_2/000/000/139/69e/FF-Gladiator-LR-1600x1200.jpg
            https://0201.nccdn.net/1_2/000/000/17f/eb5/FF-Gladiator-bottom-1600x1200.jpg
            https://0201.nccdn.net/1_2/000/000/199/715/FF-Gloster-Box-Art-1600x442.jpg
            https://0201.nccdn.net/1_2/000/000/139/69e/FF-Gladiator-LR-1600x1200.jpg
            https://0201.nccdn.net/1_2/000/000/17f/eb5/FF-Gladiator-bottom-1600x1200.jpg
            https://0201.nccdn.net/1_2/000/000/199/715/FF-Gloster-Box-Art-1600x442.jpg

            Files to Download

            FF Gladiator Plan Package.pdf
            ff Gladiator Iron On Transfer Layout - Letter.pdf
            ff Gladiator Iron On Transfer Layout - A4.pdf

            DeHavilland Chipmunk

            External link opens in new tab or window

            This is the DeHavilland Chipmunk. The markings are those of the original kit with some enhancements. Color was added where the original kit had bare balsa. The model has a wing span of 17".

            External link opens in new tab or window

            Files to Download

            FF Chipmunk.pdf
            FF Chipmunk iron on transfer - Letter Size.pdf
            FF Chipmunk iron on transfer - A4 Size.pdf

            DeHavilland Puss Moth

            External link opens in new tab or window

            This is the DeHavilland Puss Moth. The markings are those of the original kit with some enhancements. Color was added where the original kit had bare balsa. The model has a wing span of 18".

            External link opens in new tab or window

            Files to Download

            FF Puss Moth.pdf
            FF Puss Moth iron on transfers - Letter size.pdf
            FF Puss Moth iron on transfers - A4 size.pdf

            Piper Pacer

            External link opens in new tab or window

            The Piper Pacer completes this series of models from FrogFlite. The markings are those of the original kit. These markings seem a bit odd for a Piper Pacer. Color was added where the original kit had bare balsa. The model has a wing span of 16".


            Because the markings used for the kit Piper Pacer seem rather odd for this aircraft, an alternate plan package was prepared using more traditional markings. The markings for this package are based on an actual Piper Pacer.

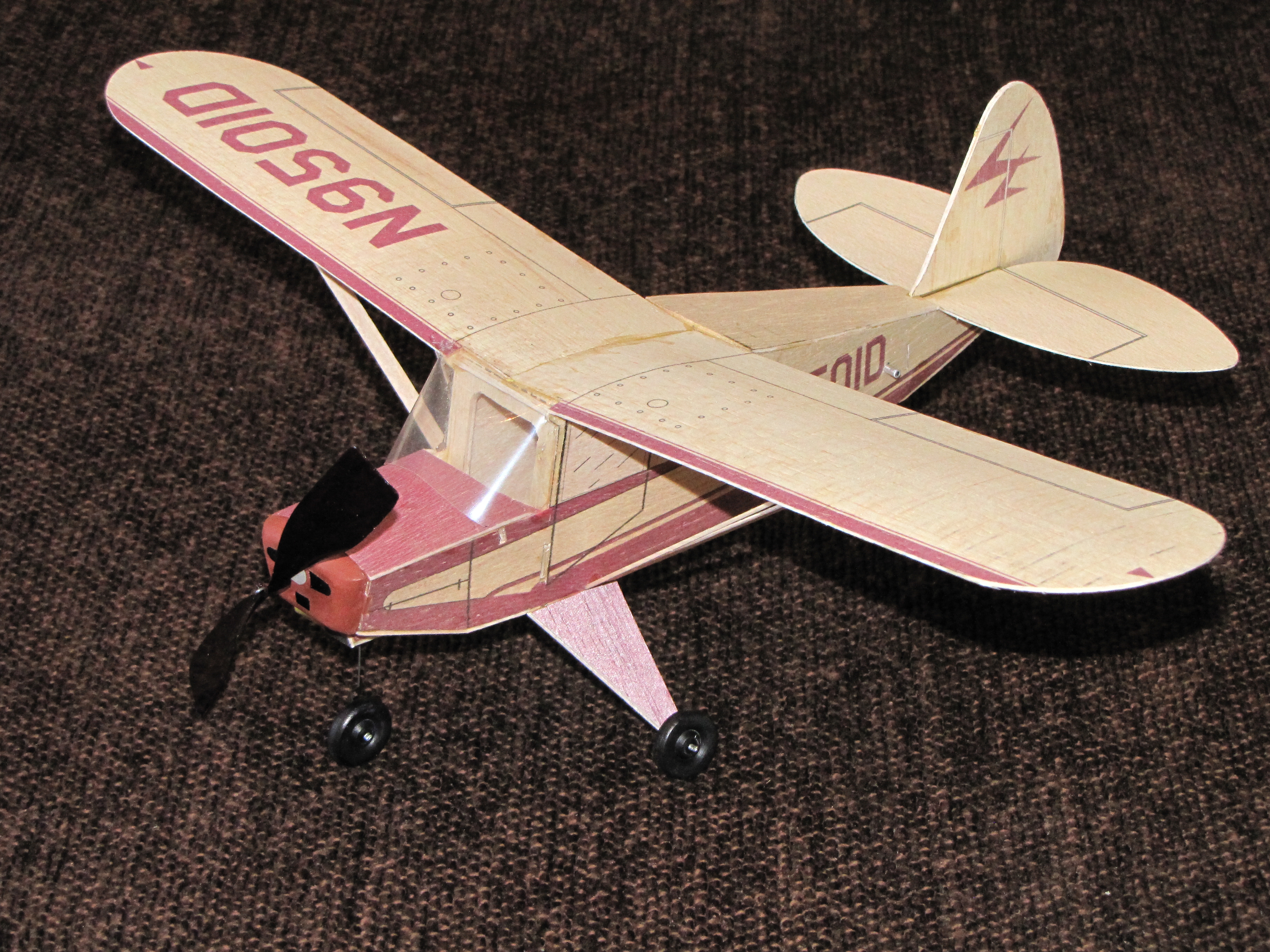

            The Piper Pacer plan includes information on building the model as a Tri-Pacer. To help make building that version a bit easier, a separate plan package was developed. More traditional markings were used based on an actual Tri-Pacer.

            https://0201.nccdn.net/1_2/000/000/172/67e/FF-Piper-Pacer---Traditional--1600x1200.jpg
            https://0201.nccdn.net/1_2/000/000/0a0/66b/FF-Tri-Pacer-1600x1200.jpg
            https://0201.nccdn.net/4_2/000/000/064/d40/FF-Piper-Pacer-Box-Art-1600x404.jpg
            https://0201.nccdn.net/1_2/000/000/172/67e/FF-Piper-Pacer---Traditional--1600x1200.jpg
            https://0201.nccdn.net/1_2/000/000/0a0/66b/FF-Tri-Pacer-1600x1200.jpg
            https://0201.nccdn.net/4_2/000/000/064/d40/FF-Piper-Pacer-Box-Art-1600x404.jpg

            Files to Download

            FF Piper Pacer.pdf
            FF Piper Pacer with more traditional markings.pdf
            FF PiperTri- Pacer.pdf
            FF Piper Pacer - Iron on transfer layout - Letter Size.pdf
            FF Piper Pacer - Iron on transfer layout - A4 Size.pdf
            FF Piper Pacer alternate markings - Iron on transfer layout - Letter Size.pdf
            FF Piper Pacer alternate markings - Iron on transfer layout - A4 Size.pdf
