Flying Aces Club (FAC) Rules No-Cal Models
Each of the plans presented here show a prop layout that works well for these models. If you are not familiar with making a "bucket" prop, please look at the Techniques and References section on making a No-Cal prop.

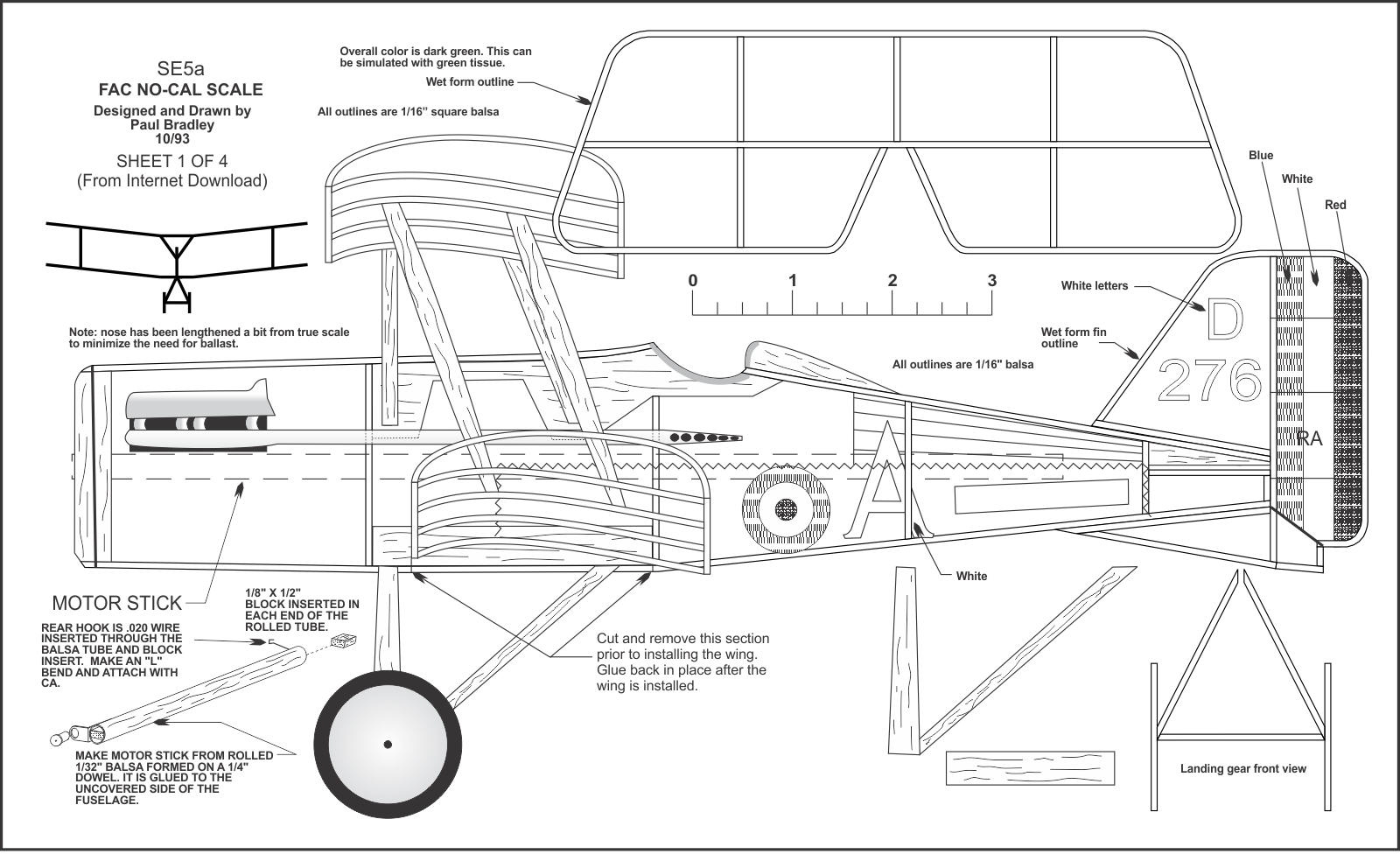

This plan is broken into 4 sheets. The first two sheets are 14" x 8.5" (legal size) and the others are 8.5" x 11" (letter size). If you would like to print the covering using our color and markings, the artwork has been organized into three sheets. The first is a legal size sheet and the others are letter size.
Markings of VF-84, USS Bunker Hill
To make sure the plan can be printed on all printers, it has been broken into three sheets. The first sheet is 14" x 8.5" (legal size) and the others are 8.5" x 11" (letter size). The printed tissue art work prints on one legal size and one letter size sheet.
Markings of VF-76, USS Hornet. The plan shows markings for ace Cdr David McCampbell.
To make sure the plan can be printed on all printers, it has been broken into three sheets. The first sheet is 14" x 8.5" (legal size) and the others are 8.5" x 11" (letter size). The printed tissue art work is one legal size sheet and one letter size sheet.
Markings of the Gulfhawk IV. The plan shows military markings from Glenview NAS 1947-1949.
To make sure the plan can be printed on all printers, it has been broken into three sheets. The first sheet is 14" x 8.5" (legal size) and the others are 8.5" x 11" (letter size). Printed tissue art work; one legal size sheet and one letter size sheet.
Markings of Col. Earl E. Bates of the 79th Fighter Group. The Curtiss P-40C are those of the American Volunteer Group 3rd Pursuit Squadron (Hell's Angles) flown by Robert T. Smith in 1941
To make sure the plan can be printed on all printers, it has been broken into three sheets. The first sheet is 14" x 8.5" (legal size) and the others are 8.5" x 11" (letter size). Printed tissue art work; one legal size sheet and one letter size sheet.
Markings of the 82nd Fighter Squadron, 78th Fighter Group
To make sure the plan can be printed on all printers, it has been broken into three sheets. The first sheet is 14" x 8.5" (legal size) and the others are 8.5" x 11" (letter size). Printed tissue art work; one legal size sheet and one letter size sheet.
Click to edit text. What do visitors to your website need to know about you and your business?
Markings of the plane flown by Lt. Eugene Wahl of the 39th Fighter Squadron, 35th Fighter Group, 5th U.S. Army Air Force, New Guinea, September 1942
Click to edit text. What do visitors to your website need to know about you and your business?
This plan is broken into three sheets. The first sheet is 14" x 8.5" (legal size) and the others are 8.5" x 11" (letter size). If you would like to print the covering using my color and markings, my artwork has been organized into two legal size sheets.
. This is the version with squared off wing tips. This allows for slightly more wing area when the layout is scaled to the FAC span limit of 16"
This plan is broken into 3 sheets. The first sheet is 14" x 8.5" (legal size) and the others are 8.5" x 11" (letter size). If you would like to print the covering using our color and markings, the artwork has been organized into one legal size sheet and one letter size sheet.
Markings are those of the P-38 in the Chino, California Planes of Fame museum
This plan is broken into 3 sheets. The first sheet is 14" x 8.5" (legal size) and the others are 8.5" x 11" (letter size). If you would like to print the covering using our color and markings, the artwork has been organized into two letter size sheets.

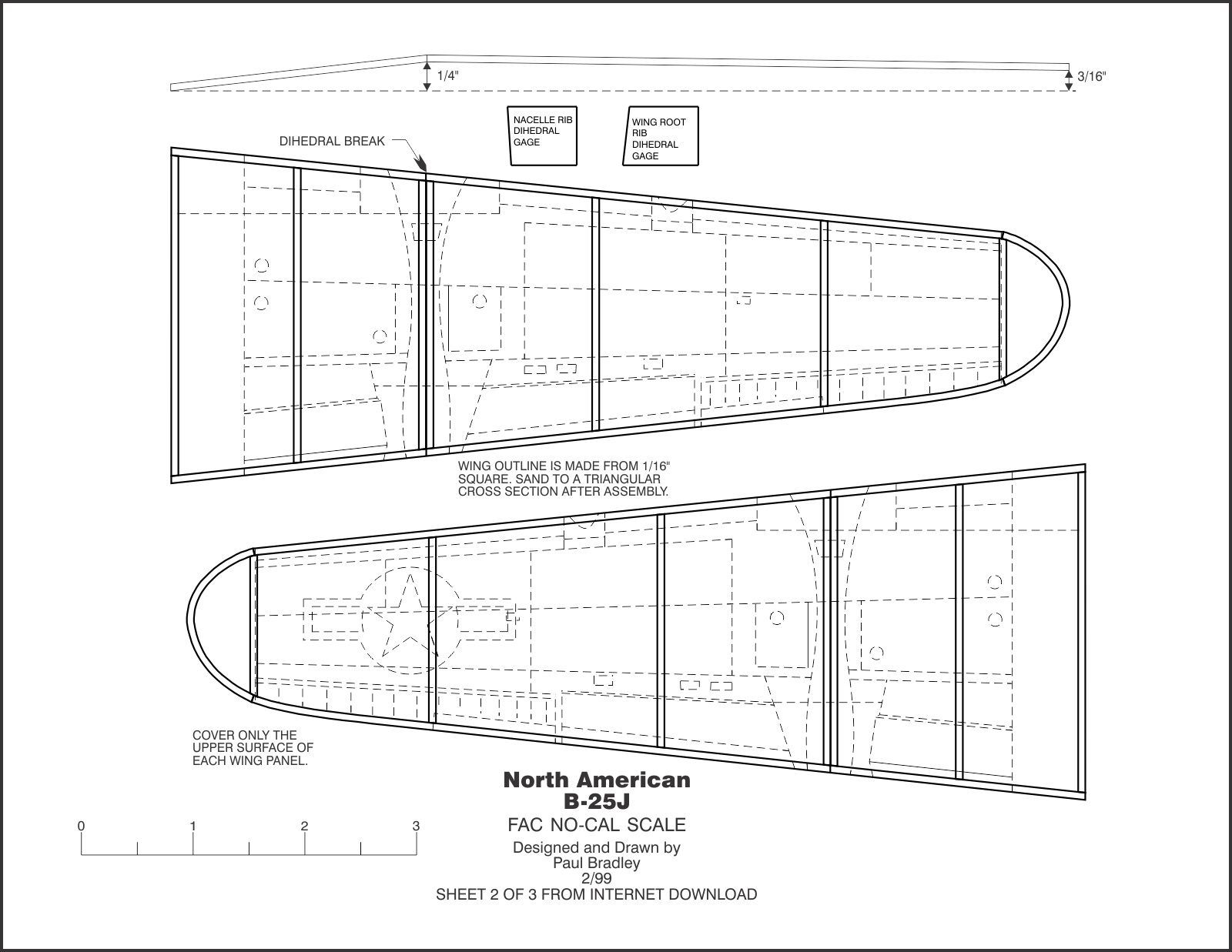

Markings of the 498th Bomber Squadron, 345th Bomber Group.
To make sure the plan can be printed on all printers, it has been broken into three sheets. The first sheet is 14" x 8.5" (legal size) and the others are 8.5" x 11" (letter size). Printed tissue art work; one legal size sheet and one letter size sheet.
Markings of the 343rd Fighter Squadron, 55th Fighter Group flown by Maj Ed Giller.
To make sure the plan can be printed on all printers, it has been broken into three sheets. The first sheet is 14" x 8.5" (legal size) and the others are 8.5" x 11" (letter size). Printed tissue art work for the model shown in the photo is provided consisting of one legal size sheet and one letter size sheet. Also provided is printed tissue art work for the EAA P-51 of Paul Poberezny. This material was provided by H.G. Frautschy. One legal size sheet and two letter size sheets.

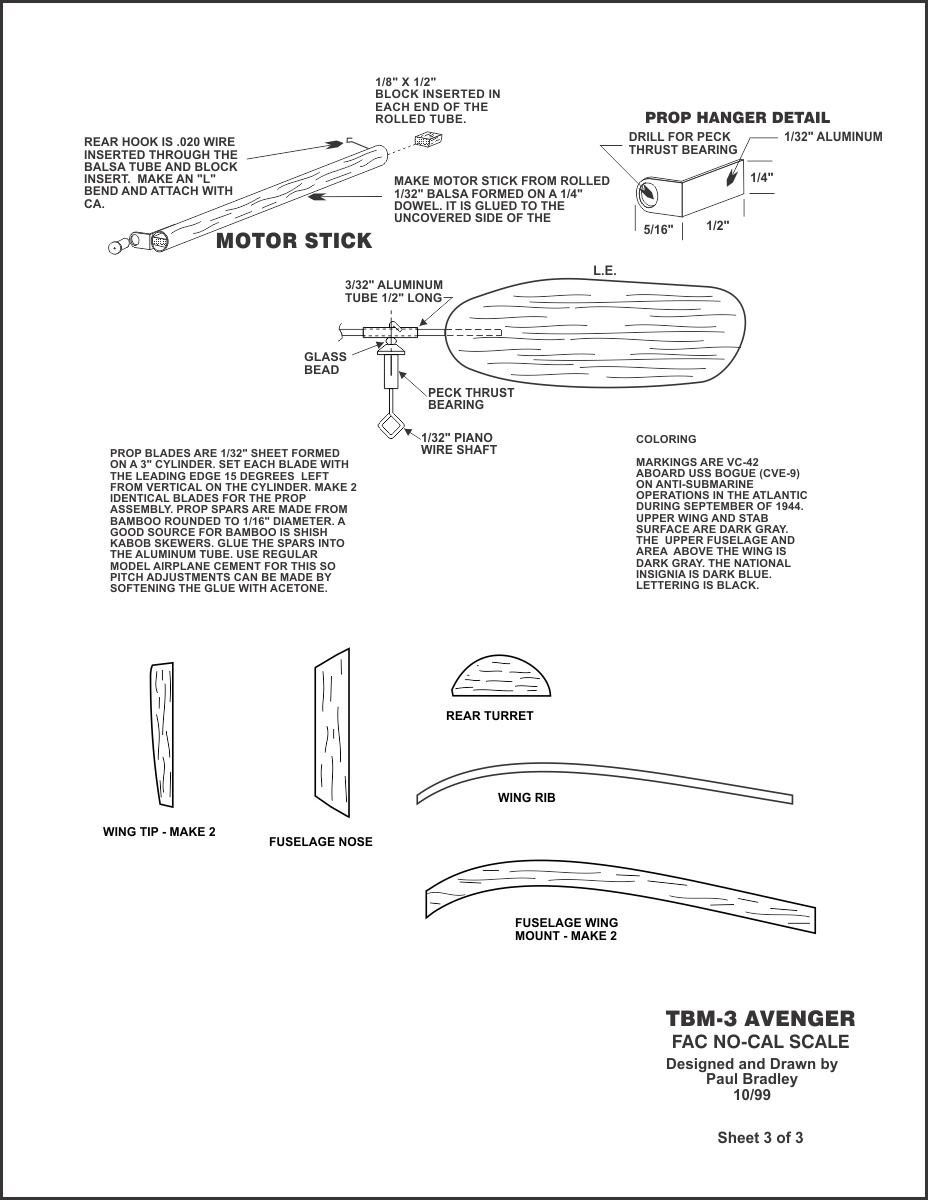

Markings of VC-42 aboard the USS Bogue during September of 1944.
To make sure the plan can be printed on all printers, it has been broken into three sheets. The first sheet is 14" x 8.5" (legal size) and the others are 8.5" x 11" (letter size). Printed tissue art work; one legal size sheet and one letter size sheet.
Markings of VB-5 of the Yorktown, Wake Island, October 1943
To make sure the plan can be printed on all printers, it has been broken into three sheets. The first sheet is 14" x 8.5" (legal size) and the others are 8.5" x 11" (letter size). Printed tissue art work; one legal size sheet and one letter size sheet.

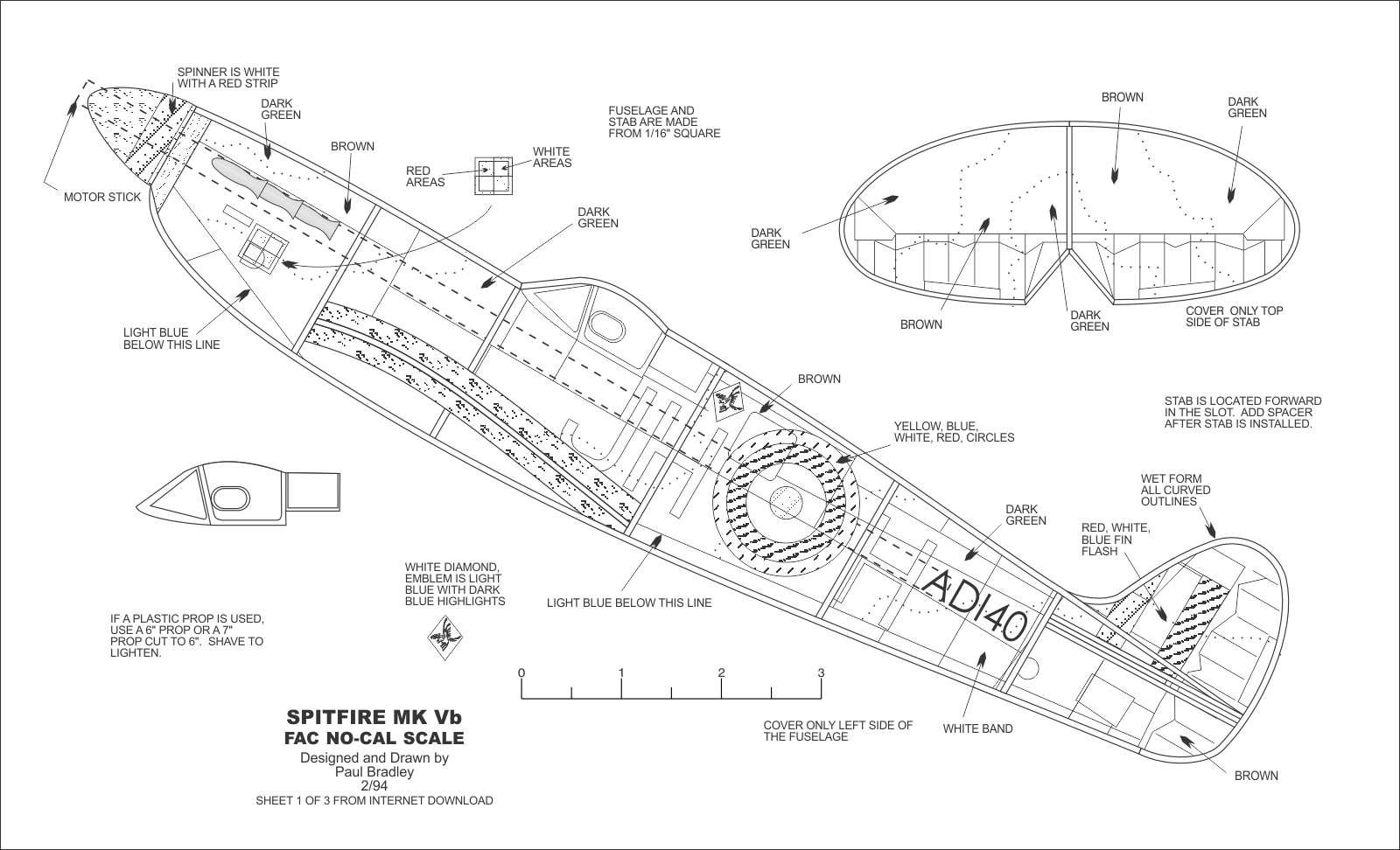

Markings of the No. 317 (Wilenski) Squadron
To make sure the plan can be printed on all printers, it has been broken into three sheets.The first sheet is 14" x 8.5" (legal size) and the others are 8.5" x 11" (letter size). Printed tissue art work; one legal size sheet and one letter size sheet.
To make sure the plan can be printed on all printers, it has been broken into three sheets. The first sheet is 14" x 8.5" (legal size) and the others are 8.5" x 11" (letter size). Printed tissue art work; one legal size sheet and one letter size sheet.

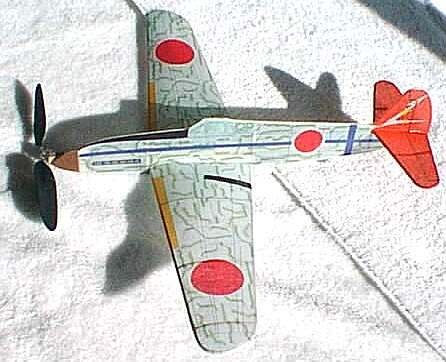

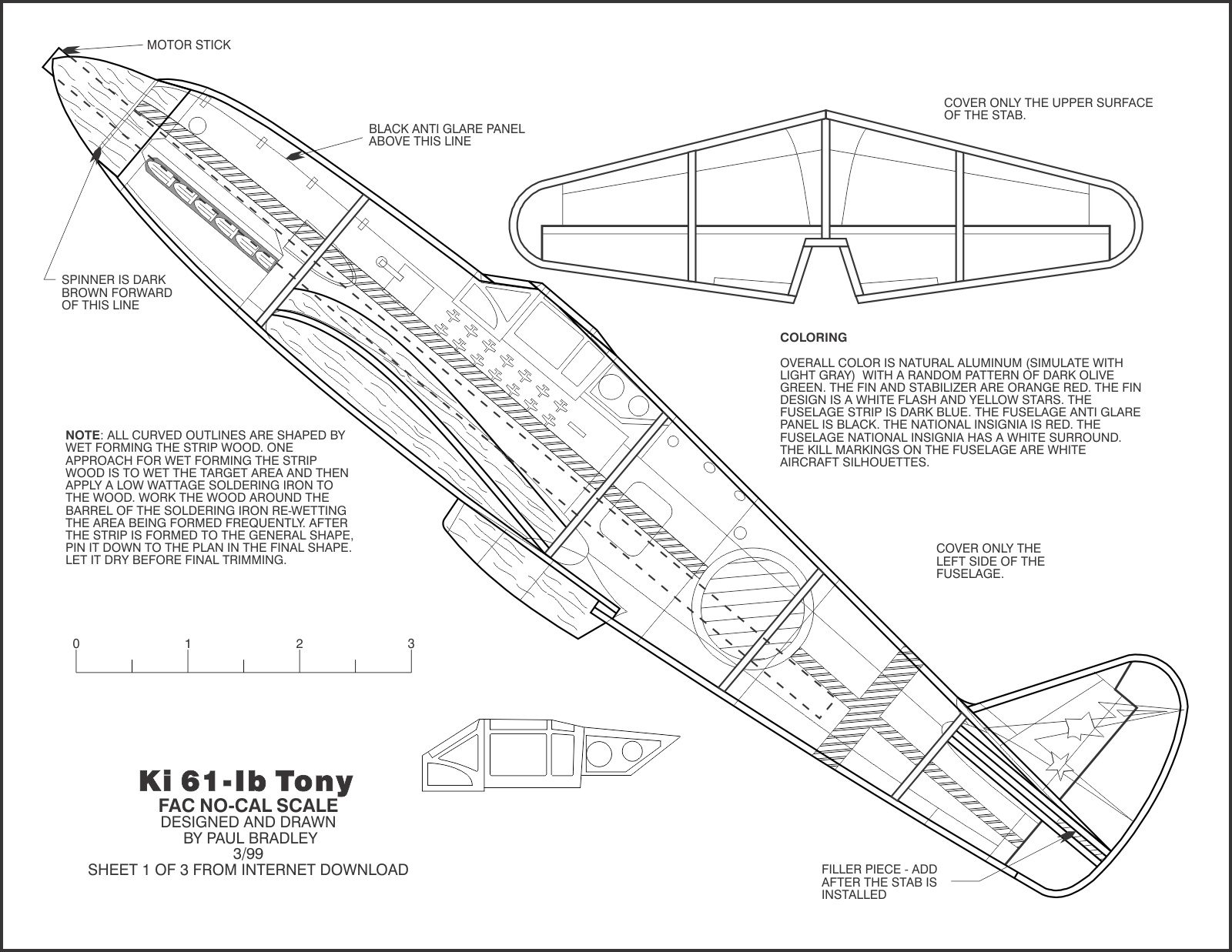

Markings of the 244th Fighter Squadron based at Chafu near Tokyo
To make sure the plan can be printed on all printers, it has been broken into three sheets. The sheets are 8.5" x 11" (letter size). Printed tissue art work; one legal size sheet and one letter size sheet.

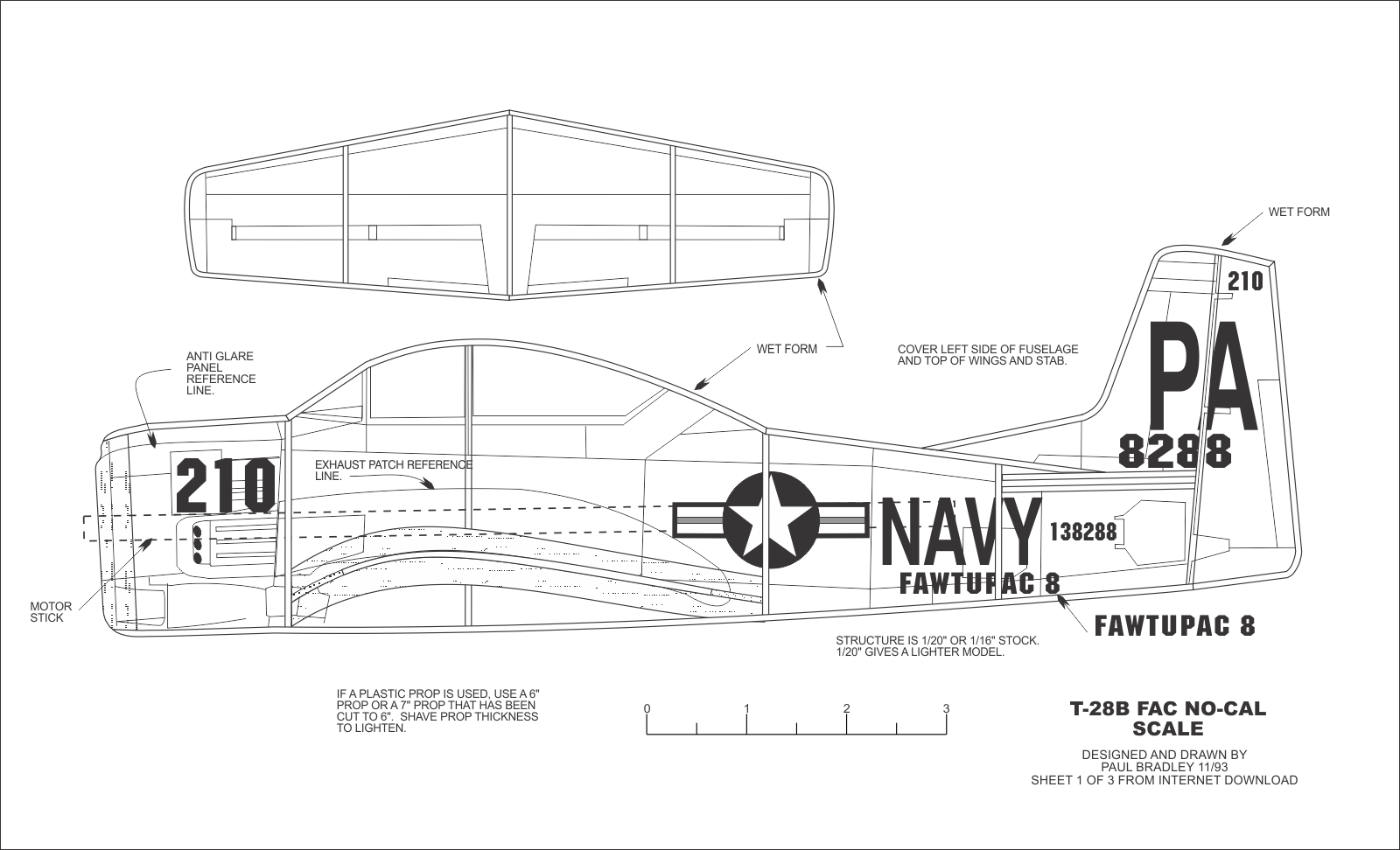

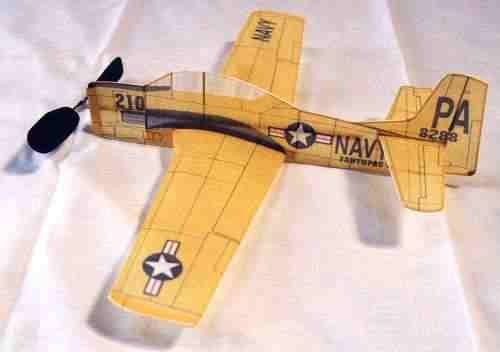

Markings of the Pacific Fleet All Weather Training Unit
To make sure the plan can be printed on all printers, it has been broken into three. The first sheet is 14" x 8.5" (legal size) and the others are 8.5" x 11" (letter size). Printed tissue art work; one legal size sheet and one letter size sheet.

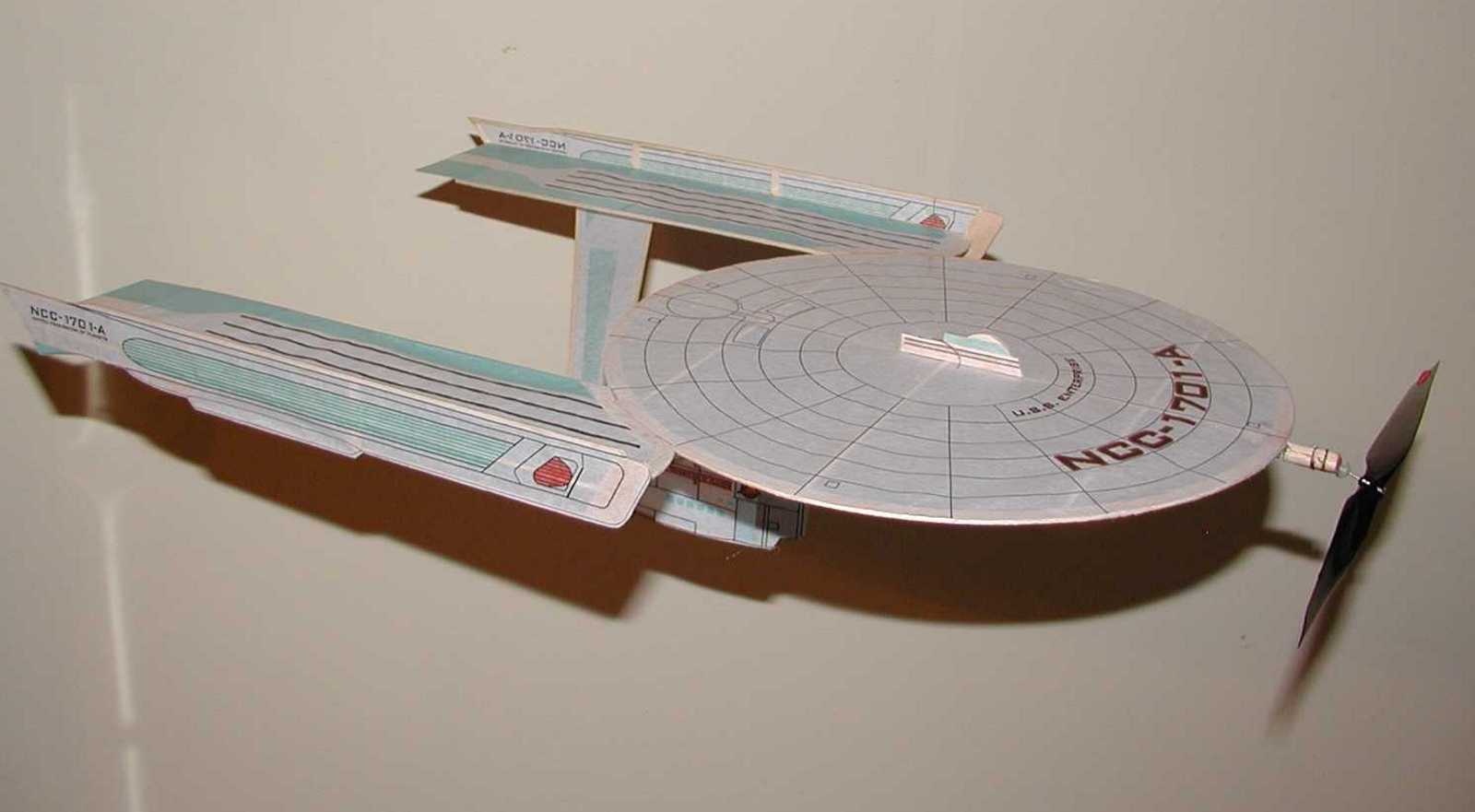

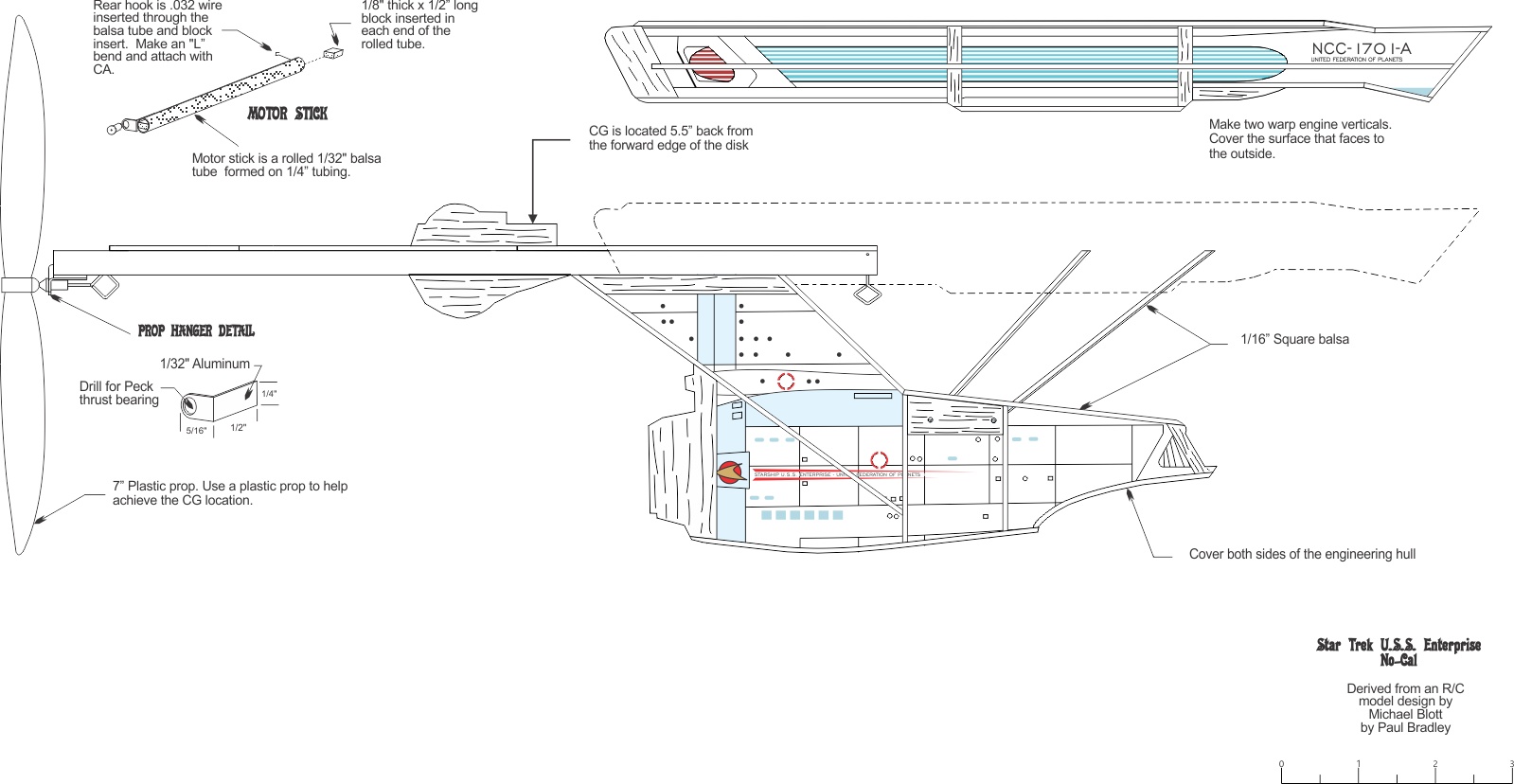

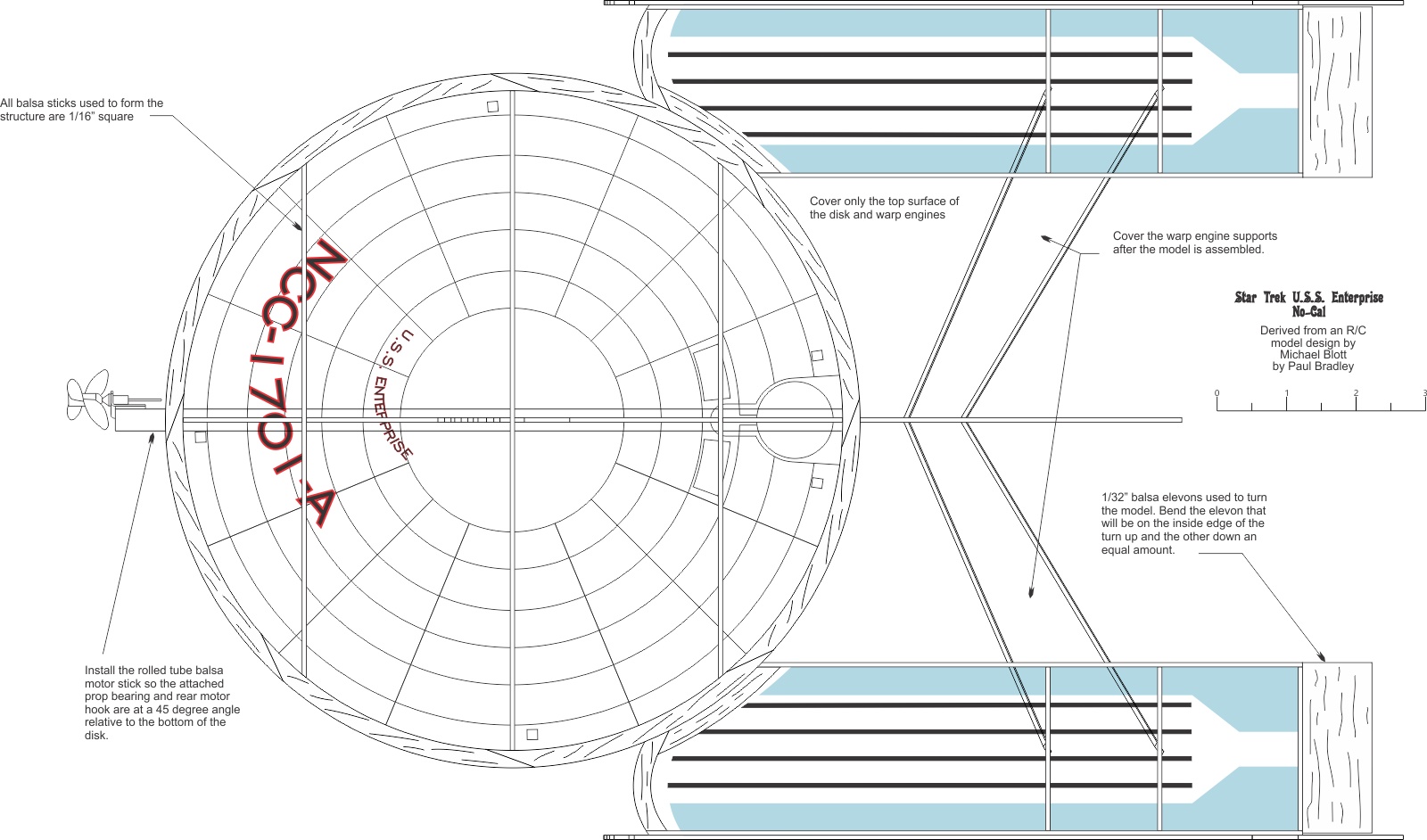

This is a fantasy model of the Star Trek starship Enterprise as it appeared in the move "The Voyage Home". Since there is no real aircraft for this model it is not competition legal. It was developed simply to have fun with a very popular subject. The FAC competition rules allow a model's wing span to be 16". Since this model is not competition legal, and due to its shape the overall width (wing span does not seem to fit this application) is 12". It has an overall length of 17". It is a nice flyer and can use a plastic prop to help achieve the necessary center of gravity. The plan package is printed on multiple legal size (8 1/2" x 14") sheets of paper. The graphics are also provided in the package for printing on tissue.

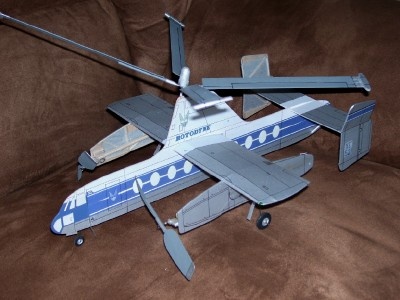

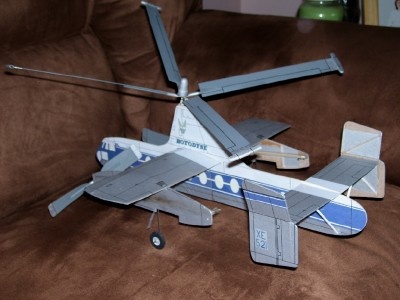

Thanks to Ray Kierna we have a nice No-Cal version of the very unique Fairey Rotodyne. The Fairey Rotodyne was a 1950's British compound gyroplane designed and built by Fairey Aviation and intended for commercial and military applications. One prototype was built. Although the Rotodyne was promising in concept and successful in trials, the program was eventually cancelled.
Ray Kierna has developed a number of successful rubber powered helicopters. Along with his successful helicopter projects, he also developed a nice No-Cal model of the Rotodyne. His original 2005 hand drawn plan has been redrawn using CAD tools and is presented here. Along with Ray's plan, ink jet printed tissue layouts are also provided for Ray's Rotodyne model.
3D Printed prop hanger from Steve Styx. As an alternative from making a prop hanger from aluminum, Steve Styx has developed a 3D printed prop hanger. The 3D print .stl file is provided here.
