            Flying Aces Club Jet Catapult Models

            Me-262

            External link opens in new tab or window

            A model of the Me 262 for the FAC Jet Cat event. This model has a 17" wing span and a flying weight in the 17 gram range.


            Presented here are the plan in tiled print format (U.S. letter size paper), some building notes (U.S. letter size paper), the ink jet printing layouts used for the model in the photos (U.S. legal size sheets), and documentation if the model is to be flown in competition.


            This model is available as a kit from External link opens in new tab or windowHummingbird Model Products.


            https://0201.nccdn.net/1_2/000/000/131/c6d/Me-262-Jet-Cat---bottom_s-1600x1349.jpg
            https://0201.nccdn.net/1_2/000/000/162/255/Me-262-Jet-Cat-plan-page-1600x1236.jpg
            https://0201.nccdn.net/1_2/000/000/13a/704/Me-262-Jet-Cat-Assembly-Guide-page-1600x1236.jpg
            https://0201.nccdn.net/1_2/000/000/09b/8c0/Me-262-Jet-Cat-covering-layout-page-1600x971.jpg
            https://0201.nccdn.net/1_2/000/000/131/c6d/Me-262-Jet-Cat---bottom_s-1600x1349.jpg
            https://0201.nccdn.net/1_2/000/000/162/255/Me-262-Jet-Cat-plan-page-1600x1236.jpg
            https://0201.nccdn.net/1_2/000/000/13a/704/Me-262-Jet-Cat-Assembly-Guide-page-1600x1236.jpg
            https://0201.nccdn.net/1_2/000/000/09b/8c0/Me-262-Jet-Cat-covering-layout-page-1600x971.jpg

            Files to Download

            Me 262 Jet Cat plan package.pdf
            Me 262 Jet Cat Assembly Guide.pdf
            Me 262 Jet Cat covering layouts.pdf
            Me262 Documentation.pdf

            TS-11 Iskra

            External link opens in new tab or window

            A model of the Polish TS-11 Iskra for the FAC Jet Cat event. This model has a 17" wing span and a flying weight in the 20 gram range.


            Presented here are the plan in tiled print format (U.S. legal size paper), some building notes (U.S. letter size paper), the ink jet printing layouts used for the model in the photos (U.S. legal size sheets), and documentation if the model is to be flown in competition .


            This model is available as a kit from External link opens in new tab or windowHummingbird Model Products.


            https://0201.nccdn.net/1_2/000/000/176/51c/TS-11_BOT-1600x1200.jpg
            https://0201.nccdn.net/1_2/000/000/0f5/964/Pages-from-TS-11-Iskra-Jet-Cat-Plan-1600x971.jpg
            https://0201.nccdn.net/4_2/000/000/03f/ac7/TS-11-Iskra-Jet-Cat-Assembly-Guide-1600x1236.jpg
            https://0201.nccdn.net/1_2/000/000/129/aaa/Covering-1600x972.jpg
            https://0201.nccdn.net/1_2/000/000/176/51c/TS-11_BOT-1600x1200.jpg
            https://0201.nccdn.net/1_2/000/000/0f5/964/Pages-from-TS-11-Iskra-Jet-Cat-Plan-1600x971.jpg
            https://0201.nccdn.net/4_2/000/000/03f/ac7/TS-11-Iskra-Jet-Cat-Assembly-Guide-1600x1236.jpg
            https://0201.nccdn.net/1_2/000/000/129/aaa/Covering-1600x972.jpg

            Files to Download

            TS-11 Iskra Jet Cat Plan.pdf
            TS-11 Iskra Jet Cat Assembly Guide.pdf
            TS-11 Covering.pdf
            TS-11 Documentation.pdf

            Northrop XF-89

            External link opens in new tab or window

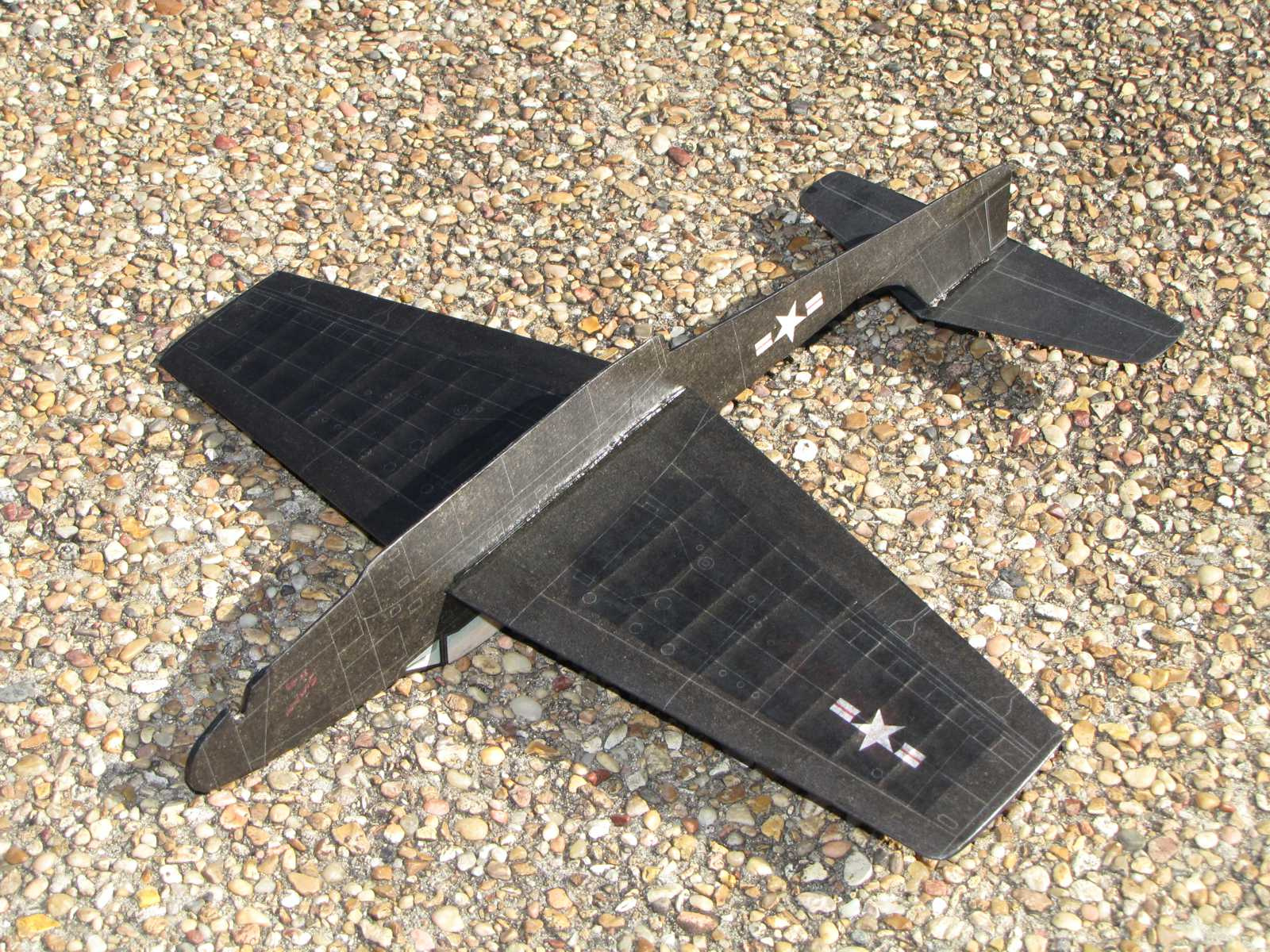

            A model of the Northrop XF-89 ((Scorpion prototype) for the FAC Jet Cat event. This model has a 15" wing span and a flying weight in the 19 gram range.


            Presented here are the plan in tiled print format (U.S. legal size paper), some building notes (U.S. letter size paper), the ink jet printing layouts used for the model in the photos (U.S. legal size sheets), and some documentation if the model is to be flown in competition.


            This model is available as a kit from External link opens in new tab or windowHummingbird Model Products.


            https://0201.nccdn.net/1_2/000/000/087/f02/XF-89_BOT1-1600x1200.jpg
            https://0201.nccdn.net/1_2/000/000/0f5/231/XF-89-Jet-Cat-Plan-4200x2550.jpg
            https://0201.nccdn.net/1_2/000/000/12c/970/Pages-from-Northrop-XF-89-Jet-Cat-Assembly-Guide-1600x1236.jpg
            https://0201.nccdn.net/1_2/000/000/0de/97a/XF-89-Covering-layouts-1600x971.jpg
            https://0201.nccdn.net/1_2/000/000/087/f02/XF-89_BOT1-1600x1200.jpg
            https://0201.nccdn.net/1_2/000/000/0f5/231/XF-89-Jet-Cat-Plan-4200x2550.jpg
            https://0201.nccdn.net/1_2/000/000/12c/970/Pages-from-Northrop-XF-89-Jet-Cat-Assembly-Guide-1600x1236.jpg
            https://0201.nccdn.net/1_2/000/000/0de/97a/XF-89-Covering-layouts-1600x971.jpg

            Files to Download

            Northrop XF-89 Jet Cat Plan.pdf
            Northrop XF-89 Jet Cat Assembly Guide.pdf
            XF-89 Covering layouts.pdf
            Northrop XF-89 Documentation.pdf

            BAC Jet Provost

            External link opens in new tab or window

            A model of the BAC Jet Provost for the FAC Jet Cat event. This model has a 17" wing span and a flying weight in the 20 gram range.


            Presented here are the plan in tiled print format (U.S. legal size paper), some building notes (U.S. letter size paper), the ink jet printing layouts used for the model in the photos (U.S. legal size sheets), and some documentation if the model is to be flown in competition..


            This model is available as a kit from External link opens in new tab or windowHummingbird Model Products.


            https://0201.nccdn.net/4_2/000/000/056/7dc/Jet-Provost-BOT.jpg
            https://0201.nccdn.net/1_2/000/000/0e5/728/Jet-Provost-Jet-Cat-Plan-1600x971.jpg
            https://0201.nccdn.net/1_2/000/000/0ab/891/Pages-from-Jet-Provost-Jet-Cat-Assembly-Guide-1600x1236.jpg
            https://0201.nccdn.net/1_2/000/000/142/280/Pages-from-Jet-Provost-covering-layouts-1600x971.jpg
            https://0201.nccdn.net/4_2/000/000/056/7dc/Jet-Provost-BOT.jpg
            https://0201.nccdn.net/1_2/000/000/0e5/728/Jet-Provost-Jet-Cat-Plan-1600x971.jpg
            https://0201.nccdn.net/1_2/000/000/0ab/891/Pages-from-Jet-Provost-Jet-Cat-Assembly-Guide-1600x1236.jpg
            https://0201.nccdn.net/1_2/000/000/142/280/Pages-from-Jet-Provost-covering-layouts-1600x971.jpg

            Files to Download

            Jet Provost Jet Cat Plan.pdf
            Jet Provost Jet Cat Assembly Guide.pdf
            Jet Provost covering layouts.pdf
            BAC Jet Provost Documentation.pdf

            Cessna T-37

            External link opens in new tab or window


            This is a model of the Cessan T-37. There are other examples of FAC Jet Cat Cessna T-37 models being flown in FAC competitions. This is just another take on a subject that has proven to be successful as a jet catapult glider. This example has a wing span of 17" and a flying weight of 24 grams.


            Provided here are the plan package, an assembly guide, printed tissue covering layouts, and some documentation should a model be built for FAC competition. The plan package and covering layouts are set up to print on US Legal Size sheets (14" x 8.5"). It was not possible to fit the components on A4 size sheets.


            This model is available as a kit from External link opens in new tab or windowHummingbird Model Products.

            https://0201.nccdn.net/1_2/000/000/122/c80/T-37_RF-1600x981.jpg
            https://0201.nccdn.net/1_2/000/000/117/0b6/T-37_Bot-2966x2296.jpg
            https://0201.nccdn.net/1_2/000/000/0ab/95d/Cessna-T-37-color-rendering-1600x1236.jpg
            https://0201.nccdn.net/1_2/000/000/0bd/63e/T-37-Assembly-Guide-1600x1236.jpg
            https://0201.nccdn.net/4_2/000/000/017/e75/T-37-Plan-1600x971.jpg
            https://0201.nccdn.net/1_2/000/000/08b/921/T-37-Covering-4200x2550.jpg
            https://0201.nccdn.net/1_2/000/000/122/c80/T-37_RF-1600x981.jpg
            https://0201.nccdn.net/1_2/000/000/117/0b6/T-37_Bot-2966x2296.jpg
            https://0201.nccdn.net/1_2/000/000/0ab/95d/Cessna-T-37-color-rendering-1600x1236.jpg
            https://0201.nccdn.net/1_2/000/000/0bd/63e/T-37-Assembly-Guide-1600x1236.jpg
            https://0201.nccdn.net/4_2/000/000/017/e75/T-37-Plan-1600x971.jpg
            https://0201.nccdn.net/1_2/000/000/08b/921/T-37-Covering-4200x2550.jpg

            Files to Download

            T-37 Plan Package.pdf
            T-37 Assembly Guide.pdf
            T-37 Documentation.pdf
            T-37 Covering layouts.pdf
