Ralph's Micro RC Models
Presented in this section are micro R/C models developed by Ralph over a period of years. The technology is always changing and the photos below represent a evolution of how the world of micro R/C models has changed over the years. An excellent resource for staying abreast of the world of R/C micro flight is an on-line publication that presents material from the leaders in the field. For your reference subscription information is provided here RC MICRO WORLD ONLINE SUBSCRIPTION.
This a 25" wing span version of the old Midwest Esquire built around 1996. It is powered with a small electric motor and 5:1 gearbox (VL HY50b). The model can be flown in the front yard. It uses 8 small 50 mha nicad cells, which can produce flights in the 4 to 5 minute range. Controls include throttle, rudder, and elevator. The radio equipment is readily available; Futuba 4 channel AM receiver (case removed), FMA S80 micro servos, and a Jeti 5 electronic speed control.
This is an original design electric powered sailplane called the Termite. It has a 35" wing span with an area of 135 square inches. As shown, the model weighs 7 ounces. It is powered with a direct drive Astro Flight brushless 010 turning a prop made up of a Robbe hub and Graupner 4.7 x 2.3 CAM prop blades. The battery pack is an 8 cell 280 mah nimh unit. The speed control is the Jeti brushless 06 that provides full proportional throttle control. The model consistently gets 16 minute flights in no lift conditions. An Adobe PDF version of the plan for this model is available below. The plan prints on legal size sheets (8.5" x 14").
This is a 1998 version of a design that appeared in Flying Models in the '50's. It is called the Guided Mite. . The original was powered with a Cox PeWee .020 reed valve glow engine. The original was single channel (rudder control) and had no throttle control. The model in the picture has an 18" wing span and is electric powered with three control channels (throttle, rudder, and elevator). The power and radio system are the same as used in the 25" Esquire above. A PDF copy of the original 1958 Guided Mite construction article is provided below.
This is the 1998 Guided Mite being used in 2000 as a multi motor test bed. The total wing span is 18". The goal was to see if a practical multi motor micro RC model could be flown successfully. The Guided Mite had the single motor and prop removed and four pager motors were added to the wing. Each pager motor has been fitted with a home built gear drive. The gear drives feature ball bearings on 1mm shafts, and have a ratio of 4:1. As flown, the model weighs 4 oz. It uses a 6 cell 50 mah battery pack, a Tetra receiver, and two Hitec HS-50 servos. The model flies very nicely although flight duration is fairly short at 1.5 minutes.
This is a smaller version of the Guided Mite. It has a 14" wing span. The wing can be separated into two halves. The model was developed to fit inside the same box that is used to store the transmitter. In addition to the model and transmitter, the box also contains a battery charger, and a field charging battery pack made up of 10 1700 mah nicad cells. The bottom photos also show the storage box equipment tray with the transmitter stored, the charger in the upper right corner, and the 10 cell field charging battery. The charger came from Bob Selman Designs . For charging 50 mah cells up to 7 in a pack, the Bob Selman charger is highly recommended. The basic configuration of this model is balsa construction with clear doped Japanese tissue covering on the wings. Control functions are throttle and rudder. The motor is a Kenway KRD-1 with a 4:1 planetary gear drive. The receiver is an FMA Tetra (AM), the speed control is a JMP-4, the servo is a Hitec HS-50, and the battery pack is 4 150 mah cells. Duration with the 150 mah cells is in excess of 10 minutes in light winds. Flying weight is 80 grams (2.8 ounces). The model can also be flown with 4 50 mah cells. With the 50 mah cells the weight is 60 grams (2.1 ounces), and flight duration is 4.5 minutes. Bob Selman has drawn a plan for the Guided Mite scaled to an 18" wing span. The plan is provided belowas a DXF file, or a multi-legal sheet TIF zip file.
This is a revised version of the 14" Guided Mite shown above. This model is the same size but incorporates elevator control and a revised power set-up. The motor is a Mabuchi M-20 using a home made gear drive. Power is supplied by a 5 cell pack of 50 mah nicad cells. The prop is a modified Gunther 5" unit. Duration is in the 5-7 minute range.
These pictures show the general arrangement of the gear drives that have been built for models like the Guided Mite. They are designed to "plug" into a snug fit hole in the model nose block. Placing the spur gear at the rear allows the motor to be run in the normal rotation direction, and makes it easier to fit the motor assembly into a narrow nose configuration. Motor combinations can be easily swapped out by simply "unplugging" one motor and pushing another into the snug fit nose block opening.
Another original design model. This one is intended for flying indoors. It has a wing area of 64 square inches and a total weight of 42 grams. It is capable of nearly 10 minute flights using four 50 mah cells. Both rudder and elevator controls are available via magnetic actuators. Throttle control is also used. A unique feature of the model is the use of the carbon fiber fuselage tube to also hold the gear drive spur gear. This makes a very clean motor installation. The prop is a lightened and size reduced 5" Gunther. The name of this model is the Corn Dog.
The Guided Mite designed by Bob Coon that first appeared in the April 1958 issue of Flying Models has been used as a development platform for several projects. Here it is represented as a 14" span micro flyer using magnetic actuators. A unique feature of the model is the way the gear train has been installed. Instead of mounting the prop drive gear assembly to the motor, it has been mounted directly on the fuselage. The motor is in turn glued to the fuselage side in a position to optimize the gear mesh. This arrangement made it very easy to set up a number of different gear ratios for development. The model flies on 3 50 mah nicad cells and weighs 34 grams. Flight duration is in the 7 minute range. A full size plan on 8.5 x 11 paper in the Adobe PDF format is provided below.
File to Download

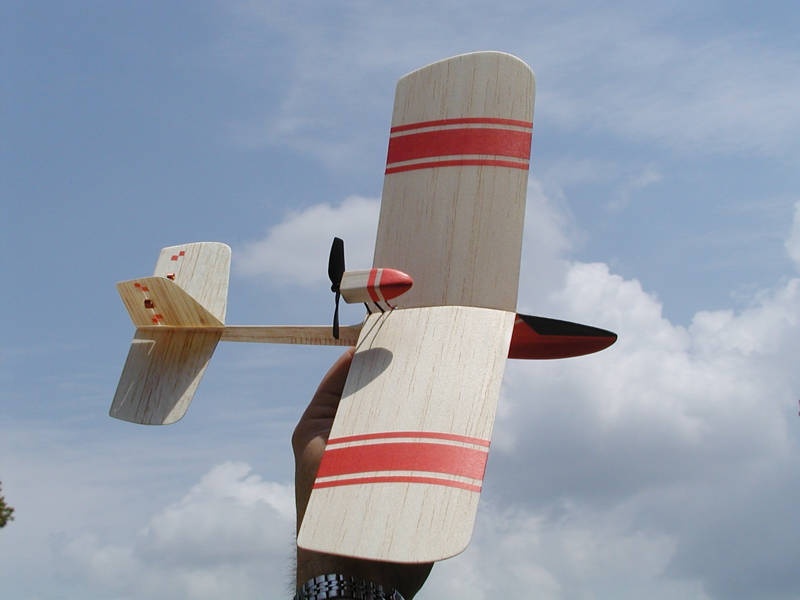

This is the Homeboy. It has been built as an all balsa model as well in a version featuring a foam wing purchased from Bob Selman Designs. This model gets it's energy from a single 145 mah Lithium Polymer cell. The motor is a Mabuchi M-20. The receiver is a JMP narrow band micro unit and the actuators are from Bob Selman. It is a great flyer indoors or outdoors. Small spaces are no problem for this bird. Flying weight is 24 grams.
Needless to say, the Guided Mite design is a favorite. This is the Micro Mite. This model has a wing span of 7 3/4 inches. It uses a direct drive motor and a single 145 mah Lithium Polymer cell. Flying weight is 15 grams. Performance is exhilarating. It has very strong climb power and can do some great rudder/elevator aerobatics. Electronics are again the JMP narrow band micro receiver and Selman actuators. It won the smallest model to fly at the 2003 Barnstormers (club just north of Houston) electric fly-in. You can download an Adobe PDF file containing the letter size plan for this model below.
File to Download
In 2003 Ralph won the smallest model at the first annual Best Electrics in Southeast Texas fly in. To defend his title in 2004 he built an even smaller version of the profile Guided Mite. This version, called the MiMi (Mini Mite), has a 5 inch wing span. It uses the same radio components as the Micro Mite shown above. Power is provided by a 60 mah Lithium Polymer cell. To help get a picture of the small size of this model and the full fuselage version of the Micro Mite, both are shown stored in Ralph's transmitter case. Also in the case are the transmitter, two LiPo chargers, and a field charging battery. Building small sure does make travel easy. The model's flying weight as shown is 9 grams. The plan is provided below.
This is the Yardmaster. The model was built as a platform to evaluate the emerging micro R/C components. The motor is a Mabuchi low volt M-20 coupled to a 4:1 planetary gear drive. The receiver is an RFFS-100 from Dynamic Web Enterprises. This models uses magnetic actuators and gets power from a single 145 mah lithium polymer cell.
The small profile Guided Mite shown just before the Yardmaster demonstrated that a fairly small model can be made to fly quite successfully, Given the success of that model, it was decided to build one with the same wing span having a full fuselage. The full fuselage would allow the equipment to be fully enclosed thereby reducing the model's drag. The result is shown here. The same basic equipment is used. Fitting everything inside the fuselage was a chore, but did get accomplished. The flying weight went up to 22 grams, but she is still a good flyer, but somewhat fast. You have to pay attention when flying this model.
Shown here is a micro R/C Rogollo wing based original design called the Cootie. The Rogollo wing was developed by a NASA engineer named Frank Rogollo. This development took place back in the late 50's early 60's. It was intended to be used for a gliding return of space craft after re-entering the atmosphere. The simplicity and light weight of the flexible membrane wing took off like wildfire within the sport aviation community. Probably the most familiar version of the Rogollo wing is the unpowered hang glider. The Rogollo wing also makes a nice powered airplane layout. This electric powered micro R/C version has throttle and rudder control. With a flying weight of 18 grams, it flies nicely indoors or outdoors and has good control authority. The motor is a Mabuchi M-20. The radio is a JMP micro unit driving a Bob Selman mini magnetic actuator.
You can download the plan for the model in the RC downloadble plans section of the site.
When you fly electric powered models, you are always looking for energy sources that will give longer and longer flights. A long time dream has been to build and fly a small pure solar powered model. Most solar powered airplanes, models and full scale, use a large number of solar cells to develop enough power to fly the airplane. The goal with this project was to see how small a model could be built that would allow solar powered flight without the presence of any batteries or other electricity storage devices. Using the now familiar Guided Mite platform, the Sol Mite was developed in 2005. The wing span for this model is 32". Power comes from 16 solar cells mounted in the wings. The cells are arranged to form two banks of 8 in parallel that are in turn connected in series. Flying weight is 144 grams. The motor is a GWS EDF 50 ducted fan motor with a gear drive. The receiver is a JMP narrow band micro unit driving two standard magnetic actuators from Bob Selman. The model flies nicely on bright sunny days with little or no wind.
When the Sol Mite was developed it was hoped that a much smaller solar powered model would one day be possible. In January 2007 Ralph realized that goal. He successfully built a solar powered version of his Micro Mite. This model has a 8" wing span and weighs 9.5 grams. Like the Sol Mite it does not have any on board battery. It uses two high efficiency solar cells as the power source. The radio is a Plantraco .38 gram three channel 900 mhz unit that includes a built in speed control. Power comes from a 4 mm pager motor combined with a home made 7.1:1 gear drive. The gears in the gear drive are watch gears. Available power is quite good and gives the model a nice climb rate.
Ralph is always looking to make them smaller. When each effort to shrink a model is always based on readily available components. His current smallest model is the Sky Bug. It has a 3" wing span and weighs 3.5 grams. It uses a Plantraco .38 gram 900 mhz receiver which controls throttle and rudder. No elevator control is used on this tiny model. A 4mm pager motor is used in a direct drive configuration. Energy comes from a 10 mah lithium polymer battery. The battery is held in place with magnetic contacts that you see in the right hand side photo of the model. If flies quite well but does take some concentration due to the very small size. Also shown is a photo of an earlier version of the Sky Bug in his transmitter carrying case along with the current Sky Bug. The earlier version has a 4 3/4" wing span.
When not building versions of the Guided Mite and very tiny models, other projects of interest include the conversion of commercial flying products to electric powered micro R/C models. Shown here is a Spin Master E-charger that started life as a low cost electric powered Free Flight. When this conversion was performed, the current crop of small light weight lithium polymer cells were not yet readily available. As a result, the energy source was a three cell 50 mah nicad battery pack. Home made magnetic actuators were used to handle the control functions. The converted E-charger proved to be a very successful micro R/C model. About the only draw back to this particular model is the highly tapered wing. It is prone to tip stalling. The current crop of micro R/C components opens the door to many potential fun projects.
