            The Dreamer Embryo

            External link opens in new tab or window

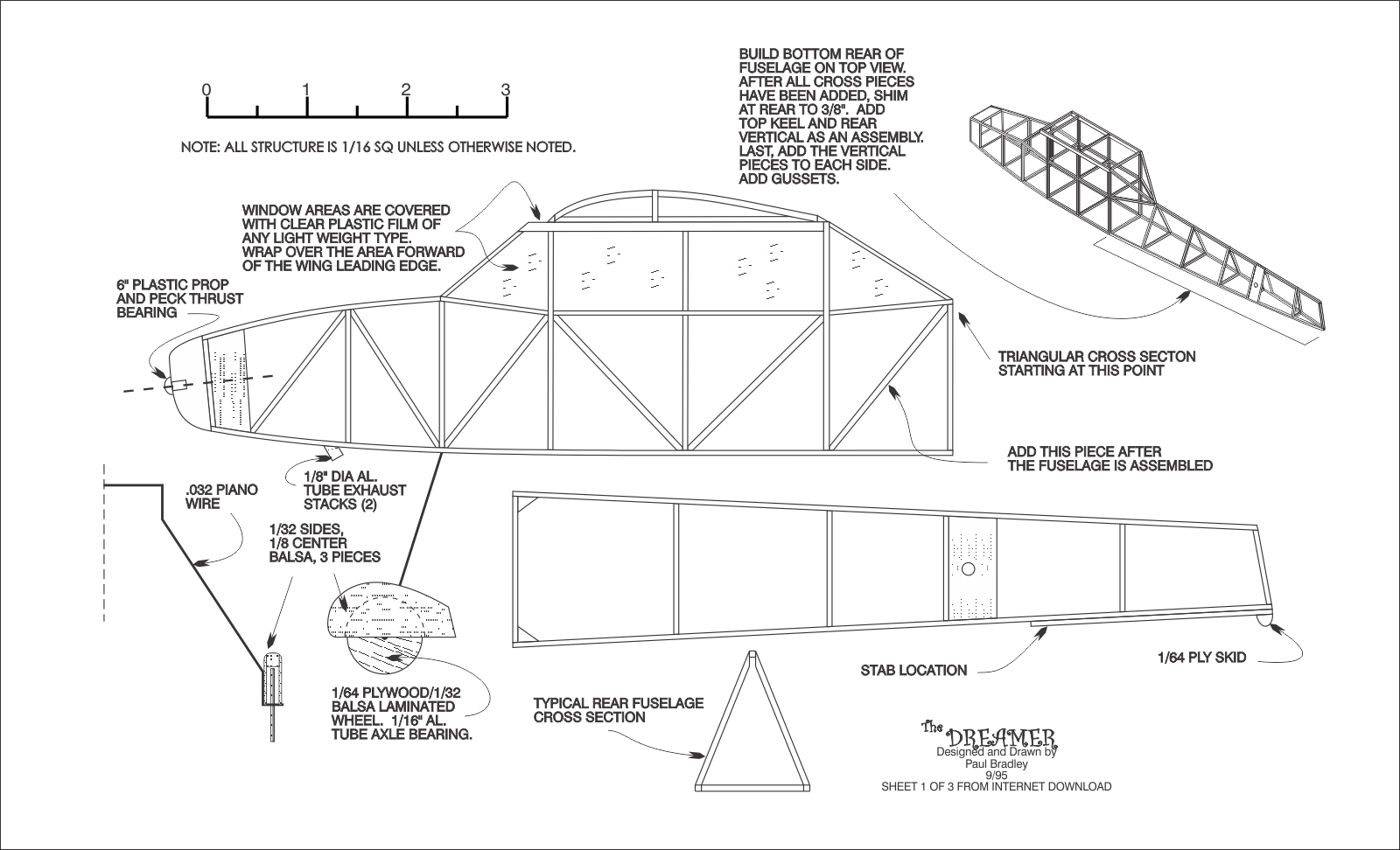

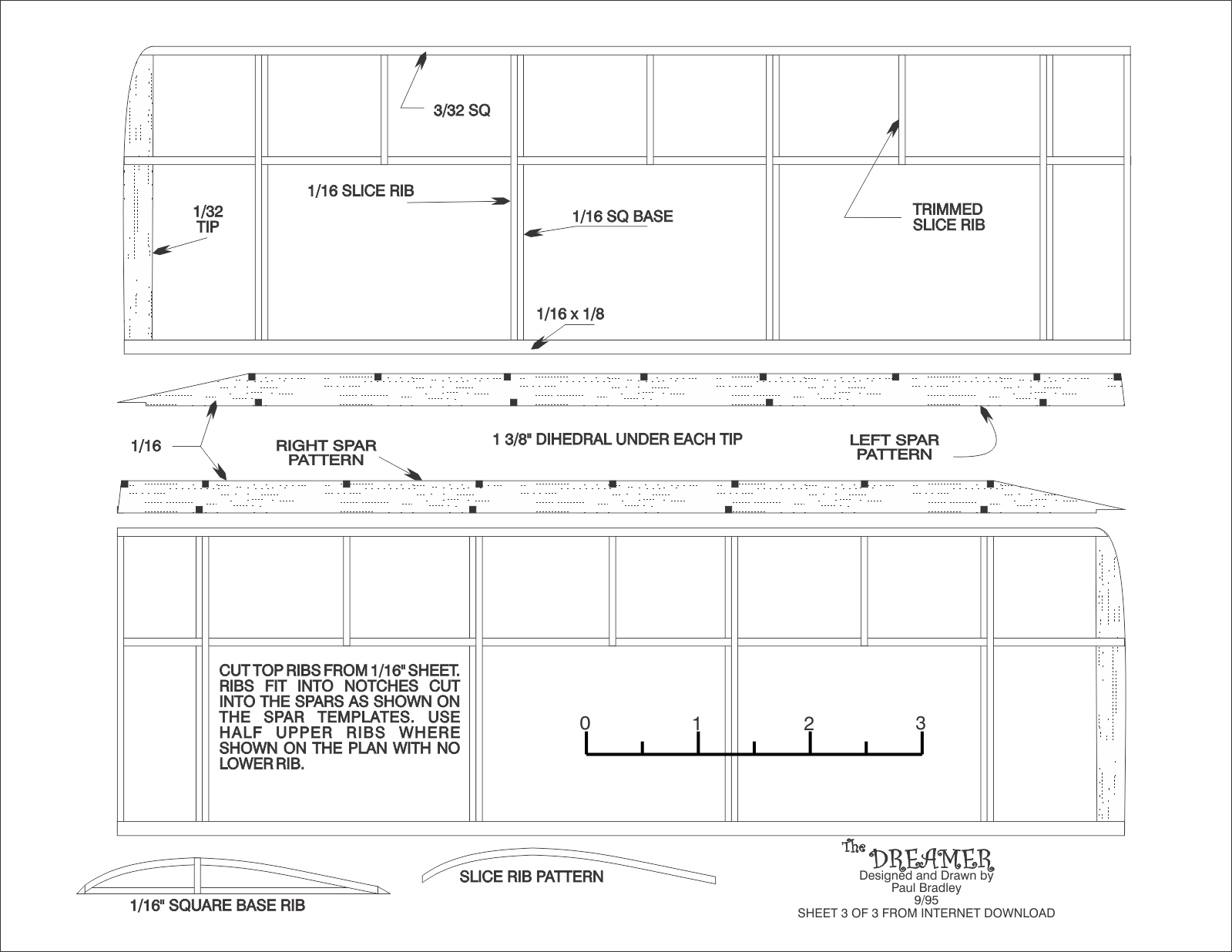

            This model was designed to conform to the Embryo Endurance class of rubber powered Free Flight models. This class is flown in both AMA (Academy of Model Aeronautics) and FAC (Flying Aces Club) competition. To be sure the plan can be printed on all printers, it has been broken into three sheets. One sheet is 8.5" x 14" and the others are 8.5" x 11". The individual plan pages have been saved in a single Adobe Portable Document File (PDF). Be sure to set the software to not scale the drawing to fit the page. This will insure that the individual pages will print at their intended size. If you do not have the Adobe Reader software, it can be obtained at no cost from the Adobe website at External link opens in new tab or windowhttp://www.adobe.com .


            If you have access to a 3D printer, you will find a 6" prop here that will work well with this model.


            https://0201.nccdn.net/4_2/000/000/008/486/Dreamer_fuse1-1600x972.jpg
            https://0201.nccdn.net/1_2/000/000/15b/ed5/Dreamer_fuse2-1599x1236.jpg
            https://0201.nccdn.net/1_2/000/000/0e6/f6e/Dreamer_wing-1599x1236.jpg
            https://0201.nccdn.net/4_2/000/000/008/486/Dreamer_fuse1-1600x972.jpg
            https://0201.nccdn.net/1_2/000/000/15b/ed5/Dreamer_fuse2-1599x1236.jpg
            https://0201.nccdn.net/1_2/000/000/0e6/f6e/Dreamer_wing-1599x1236.jpg

            Dreamer.pdf
